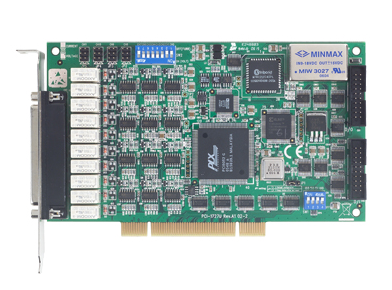

Advantech PCI-1727U

14-bit, 12-channel Analog Output PCI Card with Digital I/O

Advantech PCI-1727U
  • PropertiesProperties
  • DescriptionDescription
  • Further InformationFurther Information
  • PDFPDF
  • 12 independent analog output channels
  • Fuse on each channel
  • Universal PCI for 5 V and 3.3 V support
  • BoardID™ switch
  • Synchronized output function
  • Supports PCL-727 compatible mode
Advantech PCI-1727U provides twelve 14-bit analog output channels, and is pin-compatible with the ISA PCL-727 card for easy migration. It supports both +/-10V and 0 ~ 20mA current loop (sink). The card’s on board DC-to-DC converter ensures the full 10V D/A output is always available. Each analog output channel has a built-in fuse to protect the circuit, PC and the external devices. PCI-1727U is an ideal, economical solution for the applications which require multiple PID control loops.In addition to its analog outputs, PCI-1727U provides 16 TTL DI and 16 TTL DO channels that are easily applied with industrial on/off control applications.
ProdGrafik
Analog Output


Channels
12

Resolution
14 bits

Output Ranges
0 ~ 5, 0 ~ 10, ±5, 4 ~ 20 mA

Throughput
Static update


General

Bus
PCI



Ordering Information

Part Number Description
PCI-1727U-AE 14bit, 12ch Synchronized Analog Output Card
PCI-1727U-A 14bit, 12ch Synchronized Analog Output Card
Accessory

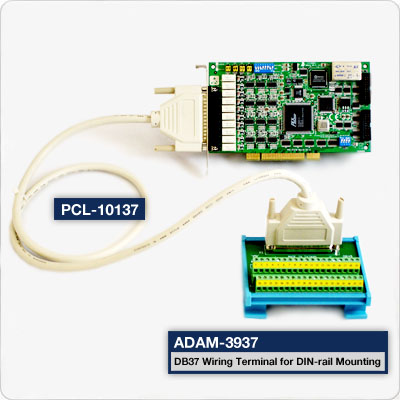

ADAM-3937-AE DB-37 Wiring Terminal, DIN-rail Mount
PCL-10120-0.4E IDC-20 Flat Cable, 0.4m
PCL-10120-1E IDC-20 Flat Cable, 1m
PCL-10120-2E IDC-20 Flat Cable, 2m
PCL-10137-1E DB-37 Shielded Cable, 1m
PCL-10137-2E DB-37 Shielded Cable, 2m
PCL-10137-3E DB-37 Shielded Cable, 3m
PCLD-7216-AE 16-ch SSR Carrier Module Board
PCLD-782-BE Opto-Isolated D/I Board
PCLD-785-AE 16-ch Relay Output Terminal
PCLD-785B-AE 24-ch Relay Output Terminal
PCLD-786-B SSR and Relay Driver Board (CE)
PCLD-885-AE 16-ch Power Relay Output Terminal
