Advantech ADAM-6217

8-ch Isolated Analog Input Modbus TCP Module

Advantech ADAM-6217
  • PropertiesProperties
  • DescriptionDescription
  • Further InformationFurther Information
  • PDFPDF
  • 8-ch differential AI, 2-port Ethernet
  • Daisy chain connection with auto-bypass protection
  • Remote monitoring and control with mobile devices
  • Group configuration capability for multiple module setup
  • Flexible user-defined Modbus address
  • Intelligent control ability by Peer-to-Peer and GCL function
  • Multiple protocol support: Modbus TCP, TCP/IP, UDP, HTTP, DHCP
  • Web language support: XML, HTML 5, Java Script
In order to fulfill ideal remote DAQ devices in IoT world, Advantech releases ADAM-6200 series, a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay modules. ADAM-6200 series module possesses plenty of advanced features whatever the evolution of hardware design and what’s worth expecting for user is a variety of useful software functions to make it effective in the application field. With new design and strong capabilities, ADAM-6200 can be a well-integrated I/O solution in Ethernet control system.

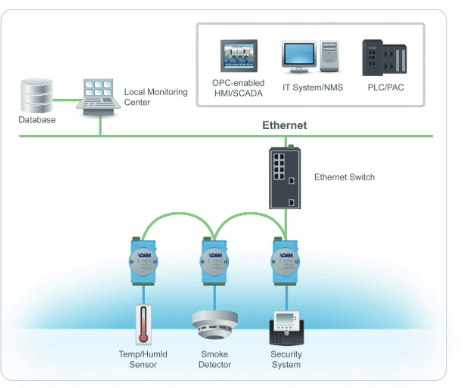

Daisy Chain Networking and Auto-Bypass Protection
Daisy chain connectivity offers flexible cabling and space saving capabilities. With Ethernet auto-bypss function supported, it prevents accidental power failure if one of the module’s unexpectedly shuts down.

Group Configuration Capability for Multiple Module Setup
To aid configuration and save time, engineers can configure and upgrade the firmware of multiple ADAM-6200s simultaneously.

Remote Monitoring and Control with Smart Phone
With support for HTML5, the ADAM-6200 can be monitored and controlled from any browser on mobile devices whilst in the field and when the engineer is connected to their network.

Peer-to-Peer
Modules will actively update the input channel status to specific output channels. Without dealing with the trouble of long distance wiring, users can define the mapping between a pair of modules.

Graphic Condition Logic
Users can define the control logic rules through graphical configuration Utility, and download defined logic rules to specific ADAM module. Then, it will execute the logic rules automatically just like a standalone controller.

ProdGrafik
Analog Input

Accuracy
-± 0.1% of FSR (Voltage) at 25°C, ± 0.2% of FSR (Current) at 25°C

Channels
8 differential

CMR @ 50/60 Hz
92 dB

Common Mode
200 VDC

Input Impedance
> 10 MΩ (voltage) ;120 WΩ (current)

Input Type
V, mV, mA

lnput Range
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0~20 mA,

Resolution
16-bit

Sampling Rates
10 samples/second (total)

Span Drift
± 30 ppm/°C

Voltage Range
±150 mV ±500 mV ±1 V ±5 V ±10 V

Zero Drift
± 6 µV/° C


Environment

Humidity (Operating)
20 ~ 95% RH (non-condensing)

Operating Temperature
-10 ~ 70°C (14 ~ 158°F)

Storage Humidity
0 ~ 95% RH (non-condensing)

Storage Temperature
-20 ~ 80°C (-4 ~ 176°F)


General

Connector
Plug-in 5P/15P screw terminal blocks

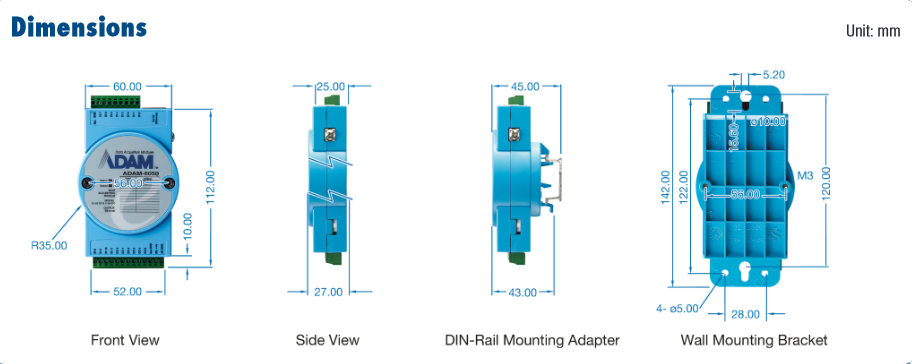

Dimensions
110 x 60 x 27 mm

Ethernet
2-port 10/100 Base-TX (for Daisy Chain)

Power Consumption
3.5W @ 24 VDC

Power Input
10 - 30 VDC (24 VDC standard)

Protection
Built-in TVS/ESD protection Power Reversal protection Over Voltage protection: +/- 35VDC Isolation protection: 2500 VDC

Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP

Watchdog Timer
System (1.6 second) & Communication (programmable)



Ordering Information

ADAM-6217
    8-ch Isolated Analog Input Modbus TCP Module

Accessories

PWR-242
    DIN-rail Power Supply (2.1A Output Current)

PWR-243
    Panel Mount Power Supply (3A Output Current)

PWR-244
    Panel Mount Power Supply (4.2A Output Current)

Software

PCLS-ADAMVIEW32
    ADAMView Data Acquisition Software

PCLS-OPC/MTP30
    OPC Server for Modbus/TCP protocol
