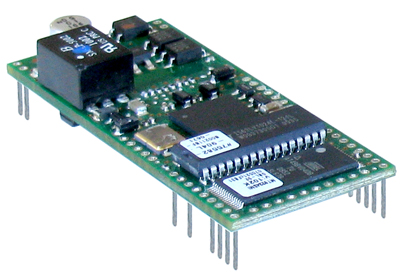

Multi-Tech SocketModem

Embedded Analog Modem

Multi-Tech SocketModem
  • PropertiesProperties
  • DescriptionDescription
  • Further InformationFurther Information
  • PDFPDF
  • Complete data/fax modem solution including the controller, data pump, and DAA
  • Universal Socket connectivity
  • Telecom approved in more than 50 countries
  • V.92/56K, V.34/33.6K and V.22bis/2400 bps data rate options
  • High speed models backward compatible with lower speeds
  • V.34/33.6K or V.17/14.4K fax
  • V.44 and V.42bis data compression
  • V.42 error correction
  • Intelligent DAA technology detects line status
  • U.S. Caller ID reporting
  • Low power/sleep mode
  • Flash memory for easy updates
  • FastPOS (V.29) and V.22bis Fast Connect
  • V.80 Synchronous Access
  • 2-wire leased line operation
  • 10 or 11-bit modes
  • 3.3V or 5V power input options
  • Serial or parallel interfaces
The SocketModem® embedded modem creates communication-ready devices by integrating data/fax modem functionality into a single, Universal Socket design. The SocketModem embedded modem utilizes a space-efficient (1"- 2.5"), design that allows OEMs to integrate a wide range of modem functions and speeds into any product platform. The complete, ready-to-integrate modem dramatically reduces development time and costs for system designers. The SocketModem embedded modem complies with telecom requirements globally and can be shipped worldwide.

The Universal Socket Developer`s Kit allows you to plug in the communications device and use it as a serial modem for testing, programming and evaluation.
ProdGrafik

Highlights

Applications

    With connect rates from 300 to 56,000 bits per second (bps), the SocketModem embedded modem is targeted at applications that periodically need to send or receive data over a standard telephone line. It is ideal for:
    • Appliances
    • ATM terminals
    • Credit card and check verification systems
    • Data collection
    • Gas pumps
    • Industrial and medical remote monitoring systems
    • Point-of-sale terminals
    • Remote diagnostics
    • Remote metering
    • Security systems
    • Television set-top boxes
    • Ticketing machines
    • Vending/gaming machine


SocketModem Pin-Out

    The SocketModem embedded modem interfaces easily with existing products through a standard serial or parallel communication channel. The complete on-board DAA interfaces with an RJ-11 jack for direct connection to the public switched telephone network. The SocketModem embedded modem provides audio circuit outputs for audio call-progress monitoring, and LED driver outputs for visual monitoring of Carrier Detect, Transmit Data, Receive Data and DTR signals. The SocketModem embedded modem is a Data Terminal Equipment (DTE) device with a serial or parallel interface. The serial DTE channel is capable of transfer speeds to 230.4K bps and can be interfaced directly to a UART or microcontroller.


Multi-Tech SocketModem embedded modem

  • V.92/56K Models

    • MT5692SMI-92 V.92 Serial Data/V.17 Fax Embedded Modem
    • MT5692SMI-L-92 V.92 Serial Data/V.17 Fax Embedded Modem
    • MT5692SMI-V-92 V.92 Serial Data/V.17 Fax/Voice Embedded Modem
    • MT5692SMI-P-92 V.92 Parallel Data/V.17 Fax Embedded Modem
    • MT5692SMI-P-L-92 V.92 Parallel Data/V.17 Fax Embedded Modem
    • MT5692SMI-X-L-92 V.92 Serial Data/V.17 Fax Embedded Modem
    • MT9234SMI-92 V.92 Serial Data, V.34 Fax Embedded Modem
    • MT9234SMI-L-92 V.92 Serial Data, V.34 Fax Embedded Modem
    • MT9234SMI-HV-92 V.92 Serial Data, V.34 Fax Embedded Modem
    • MT9234SMI-P-92 V.92 Parallel Data, V.34 Fax Embedded Modem
    • MT9234SMI-P-L-92 V.92 Parallel Data, V.34 Fax Embedded Modem
    • MT9234SMI-P-HV-92 V.92 Parallel Data, V.34 Fax Embedded Modem


  • V.34/33.6K Models

    • MT5692SMI-34 V.34 Serial Data/V.17 Fax Embedded Modem
    • MT5692SMI-L-34 V.34 Serial Data/V.17 Fax Embedded Modem
    • MT5692SMI-P-34 V.34 Parallel Data/V.17 Fax Embedded Modem
    • MT5692SMI-V-34 V.34 Serial Data/V.17 Fax/Voice Embedded Modem
    • MT5692SMI-P-L-34 V.34 Parallel Data/V.17 Fax Embedded Modem
