Advantech ARK-3510

prodgraf

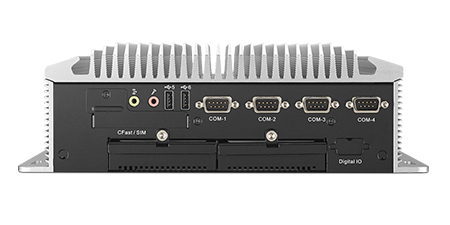

3rd Gen. Intel® Core™ i3/ i5/ i7 with 2 x 2.5" Removable HDD Bays Fanless Box PC



Properties


Description

3rd Gen. Intel® Core™ i3/ i5/ i7 with 2 x 2.5" Removable HDD Bays Fanless Box PC



ProdGrafik

Further Information


Part Number            ARK-3510L-00A1E


Processor

CPU
Intel 3rd Gen Core i7-3610QE/Core i5-3610ME/Core i3-3120ME/Celeron 1020E

Core Number
4 / 2 / 2 / 2

Frequency
2.3 GHz/2.7 GHz/2.4 GHz/2.2GHz

L3 Cache
6 / 3 / 3 / 2 MB

System Chipset
Intel QM77

BIOS
AMI EFI 64Mbit


Memory

Technology
DDR3/DDR3L 1600MHz

Max. Capacity
16 GB

Socket
2 x 204-pin SO-DIMM


Graphics

Chipset
Intel QM77 Integrated GFX Gen 7

Graphic Engine
DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1

CRT
VGA integrated in DVI-I port

DVI-I
1920 x 1200 @ 60 Hz

HDMI
Support HDMI 1.4, 1920 x 1200 @ 60 Hz

Display port
2560 x 1600 @ 60Hz (Video only, and only support on 3rd generation processor)

Dual Display
VGA+DVI, VGA+HDMI, VGA+DP, DVI+HDMI, DVI+DP, HDMI+DP(DP not support on Celeron sku.)

Triple Display
DVI-D + HDMI + DisplayPort(not support on Celeron sku.)


Ethernet

LAN1
10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan

LAN2
10/100/1000 Mbps Intel I-210IT GbE, support Wake On Lan


Audio

Interface
Realtek ALC892, High Definition Audio, Line-out, Mic-in

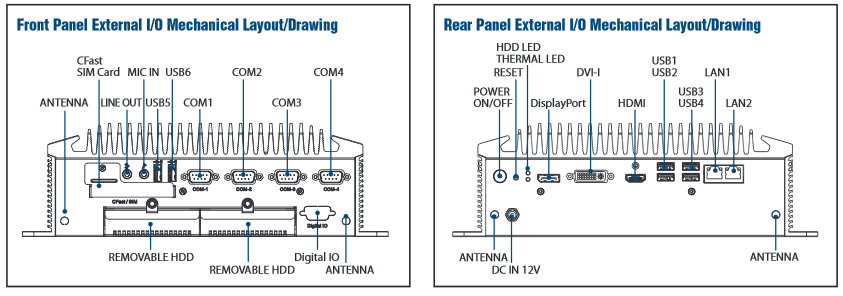

I/O Interface

Serial Port
2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control

USB
4 x USB 3.0 ports (USB1,2,3,4); 2 x USB 2.0 ports (USB5,6)


Expansion

Mini PCIe
2 x Full-size Mini PCIe with SIM holder (Supports mSATA)

MIOe Module
Yes


Storage

HDD
Two 2.5" SATA removable HDD Bays with maximum device height 9.5mm, SATA III, Gen 3 Support (Max. Data Transfer Rate 600MB/s), Support SATA RAID 0, 1, 5, 10

Solid State Disk
1 x CFast Card


Software Support

Microsoft Windows
Windows 8 , Windows 7, XP Professional, XP Embedded, WinCE 6.0

Linux
Ubuntu 12.04


Power

Power Type
AT/ATX

Input Voltage
12 VDC, ± 10% (9 ~ 34 VDC support by request)

Power Adaptor
AC to DC, DC12V / 7A, 84 W (Optional)

Consumption
Typical 19.2/16.4/14.8/16.4W, Max. 60/36.5/30/31.8W


Mechanical

Construction
Aluminum housing

Mounting
Desk/wall-mounting

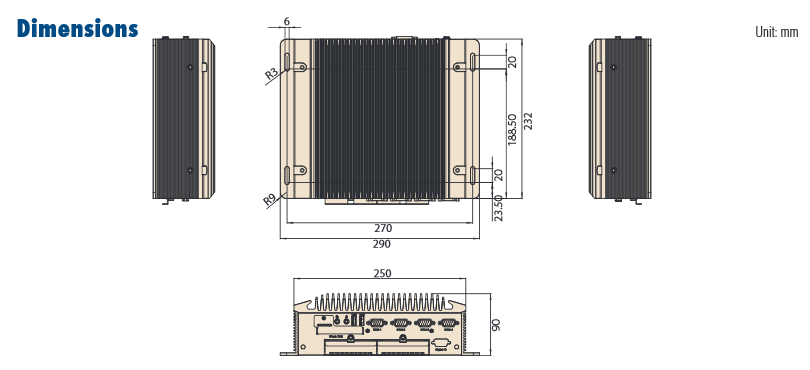

Dimensions
290 x 90 x 232 mm (11.4" x 3.54" x 9.13")

Weight
4.63kg


Environment

Operating Temperature
with SSD : -10 ~ 60° C with 0.7m/s air flow/with HDD : 0 ~ 40° C with 0.7m/s air flow

Storage Temperature
-40 ~ 85° C

Relative Humidity
95% @ 40° C (non-condensing)

Vibration during Operation
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

EMC
CE/FCC Class A, CCC, BSMI

Shock During Operation
With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration

Safety Certifications
UL, CCC, BSMI



PDF

PDF description Advantech ARK-3510 Datasheet (1201.6 kB)
