Advantech ARK-3500

prodgraf


3rd Gen. Intel® Core™ i3/ i5/ i7 with 2 Expansion slots and wide range power Fanless Box PC



Properties


Description

3rd Gen. Intel® Core™ i3/ i5/ i7 with 2 Expansion slots and wide range power Fanless Box PC



ProdGrafik

Further Information

Processor

CPU
Intel 3rd Gen Core i7-3610QE/Core i5-3610ME/Core i3-3120ME/Celeron 1020E

Core Number
4 / 2 / 2 / 2

Frequency
2.3 GHz/2.7 GHz/2.4 GHz/2.2GHz

L3 Cache
6 / 3 / 3 / 2 MB

Watts
45/35/35/35W

System Chipset
Intel QM77

BIOS
AMI EFI 64Mbit


Memory

Technology
DDR3/DDR3L 1600MHz

Max. Capacity
16 GB

Socket
2 x 204-pin SO-DIMM


Graphics

Chipset
Intel QM77 Integrated GFX Gen 7

Graphic Engine
DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1

CRT
VGA integrated in DVI-I port

DVI-I
1920 x 1200 @ 60 Hz

HDMI
Support HDMI 1.4, 1920 x 1200 @ 60 Hz

Display port
2560 x 1600 @ 60Hz (Video only, and only support on 3rd generation processor)

Dual Display
VGA+DVI, VGA+HDMI, VGA+DP, DVI+HDMI, DVI+DP, HDMI+DP(DP not support on Celeron sku.)

Triple Display
DVI-D + HDMI + DisplayPort(not support on Celeron sku.)


Ethernet

LAN1
10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan

LAN2
10/100/1000 Mbps Intel I-210IT GbE, support Wake On Lan


Audio

Interface
Realtek ALC892, High Definition Audio, Line-out, Mic-in

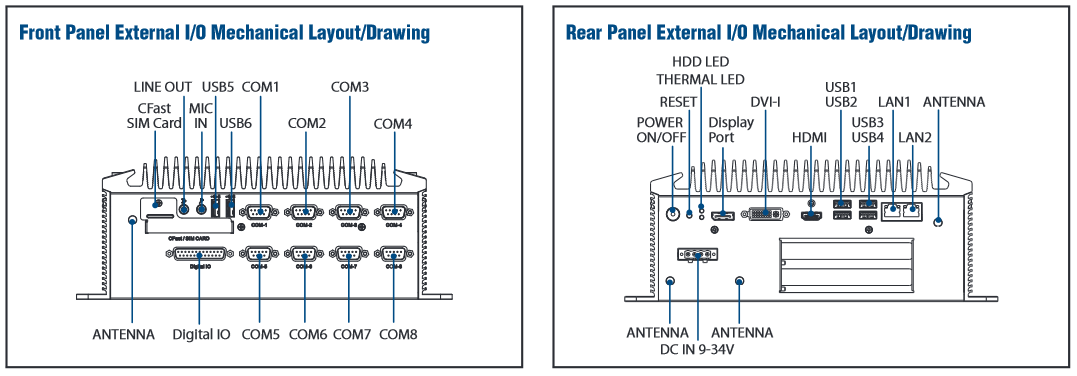

I/O Interface

Serial Port
4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control

USB
4 x USB 3.0 ports (USB1,2,3,4); 2 x USB 2.0 ports (USB5,6)

DIO
16 bit DIO


Expansion

ARK-3500F-00A1E ARK-3500P-00A1E
Mini PCIe 2 x Full-size Mini PCIe with SIM holder (Supports mSATA)   2 x Full-size Mini PCIe with SIM holder (Supports mSATA)
PCI Express x 1     1 -
PCI - 2
PCI Express x 4 1 -


Storage

HDD
Two 2.5" SATA HDD Bays with maximum device height 9.5mm, SATA III, Gen 3 Support (Max. Data Transfer Rate 600 MB/s), Support

Solid State Disk
1 x CFast Card slot


Software Support

Microsoft Windows
Windows 8 , Windows 7, XP Professional, XP Embedded, WinCE 6.0

Linux
Ubuntu 12.04


Power

Power Type
AT/ATX

Input Voltage
9 ~ 34 VDC

Power Adaptor
AC to DC, DC19V / 6.32A, 120W (Optional)

Consumption
Typical 19.2/16.4/14.8/16.4W, Max. 60/36.5/30/31.8W


Mechanical

Construction
Aluminum housing

Mounting
Desk/wall-mounting

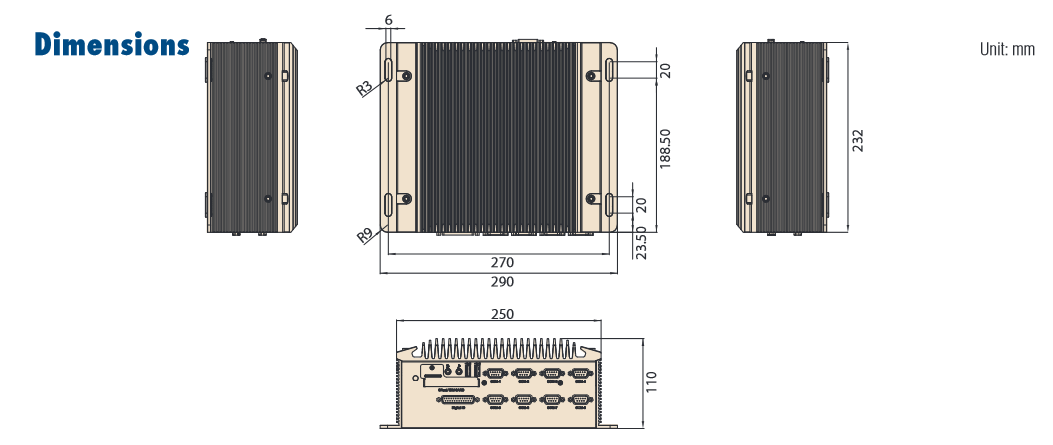

Dimensions
290 x 110 x 232mm (11.4" x 4.33" x 9.13")

Weight
4.8 kg


Environment

Temperature (Operating)
with SSD : -10 ~ 60° C with 0.7m/s air flow/with HDD : 0 ~ 40° C with 0.7m/s air flow

Temperature (Storage)
- 40 ~ 85° C (-40 ~185° F)

Relative Humidity
95% @ 40° C (non-condensing)

Vibration during Operation
With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

Shock During Operation
With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration

Safety Certifications
UL, CCC, BSMI



PDF

PDF description Advantech ARK-3500 Datasheet (1053.8 kB)
