MOXA IKS-6726A / IKS-6728A Series

24+2G/24+4G-port modular managed Ethernet switches

MOXA IKS-6726A / IKS-6728A Series
  • PropertiesProperties
  • DescriptionDescription
  • Further InformationFurther Information
  • PDFPDF
  • Command Line Interface (CLI) for quickly configuring major managed functions
  • Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for precise time synchronization of networks
  • DHCP Option 82 for IP address assignment with different policies
  • Support EtherNet/IP and Modbus/TCP protocols for device management and monitoring
  • Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
  • IEEE 802.3ad, LACP for optimum bandwidth utilization
  • TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for efficient network monitoring and proactive capability
  • Bandwidth management prevents unpredictable network status with “Lock port” to restrict access to authorized MAC addresses
  • Port mirroring for online debugging
  • Automatic warning by exception through email, relay output
  • Automatic recovery of connected device’s IP addresses
  • Line-swap fast recovery
  • Configurable by web browser, Telnet/serial console, CLI, Windows utility, and ABC-02-USB automatic backup configurator
The IKS-6726A/6728A series of industrial rackmount Ethernet switches are designed to meet the rigorous demands of mission critical applications for industry and business, such as traffic control systems and maritime applications. The IKS-6726A/6728A’s Gigabit and fast Ethernet backbone, redundant ring, and 24/48 VDC or 110/220 VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling and wiring costs. The modular design of the IKS-6726A/6728A also makes network planning easy, and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 fast Ethernet ports.

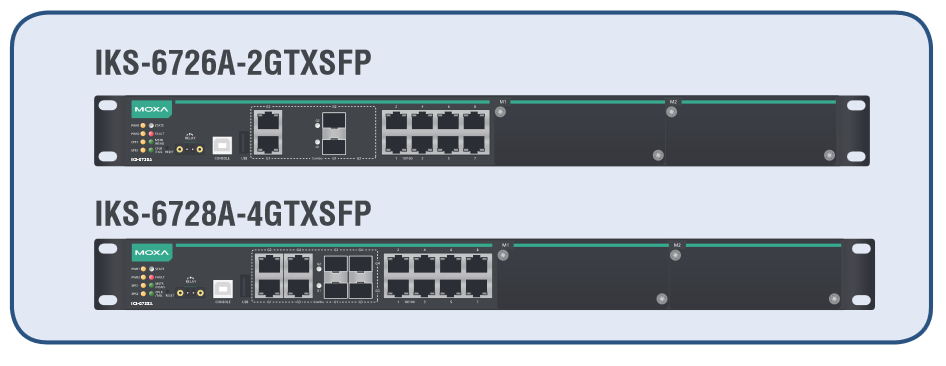

ProdGrafik

Technology

Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP

Protocols
IGMP v1/v2/v3, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, DHCP Option 66/67/82, EtherNet/IP, Modbus/TCP, LLDP, IEEE 1588 PTP V2, IPv6, NTP Server/Client

MIB
MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control
IEEE 802.3x flow control, back pressure flow control


Switch Properties

Priority Queues
4

Max. Number of Available VLANs
64

VLAN ID Range
VID 1 to 4094

IGMP Groups
2048

MAC Table Size
16 K

Packet Buffer Size
12 Mbit

Jumbo Frame Size
9.6 KB


Interface

Fast Ethernet
8-port 10/100Base T(X) and 2 modular slots for any 8-, or 6-port Interface Modules with 10/100BaseT(X), 100BaseFX (SC/ST connector), or 100Base SFP
Note See the IM-6700A datasheet for Fast Ethernet module product information.

Gigabit Ethernet
2- or 4-port 10/100/1000BaseT(X) or 100/1000Base SFP

Console Port
USB-serial console (Type B connector)

Storage Port
USB storage (Type A connector for ABC-02-USB)

System LED Indicators
STATE, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL

Alarm Contact
1 relay output with current carrying capacity of 3 A @ 30 VDC or 3 A @ 240 VAC


Power Requirements

Input Voltage
24 VDC (18 to 36 VDC), 48 VDC (36 to 72 VDC), or 110/220 VAC (85 to 264 VAC)

Input Current
(without IM-6700A modules installed)
  • Max. 0.42 A @ 24 VDC
  • Max. 0.22 A @ 48 VDC
  • Max. 0.32/0.16 A @ 110/220 VAC

Overload Current Protection
Present

Reverse Polarity Protection
Present


Physical Characteristics

Housing
IP30 protection

Dimensions
440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)

Weight
4100 g

Installation
19’’ rack mounting


Environmental Limits

Operating Temperature
-40 to 75°C (-40 to 167°F)

Storage Temperature
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)


Standards and Certifications

Safety
UL 60950-1, EN 60950-1

EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,
EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11

Rail Traffic
EN 50121-4

Shock
IEC 60068-2-27

Freefall
IEC 60068-2-32

Vibration
IEC 60068-2-6


MTBF (mean time between failures)

Time
148,687 hrs

Database
Telcordia (Bellcore), GB



Ordering Information

Available Modules
IKS-6728A-4GTXSFP-HV-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports,
and 2 slots for fast Ethernet modules, front cabling, 1 isolated power supply ( 85-264 VAC), -40 to 75°C
IKS-6728A-4GTXSFP-HV-HV-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports,
and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies (85-264 VAC), -40 to 75°C
IKS-6728A-4GTXSFP-24-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports,
and 2 slots for fast Ethernet modules, front cabling, 1 isolated power supply (24 VDC), -40 to 75°C
IKS-6728A-4GTXSFP-24-24-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports,
and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies (24 VDC), -40 to 75°C
IKS-6728A-4GTXSFP-48-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports,
and 2 slots for fast Ethernet modules, front cabling, 1 isolated power supply (48 VDC), -40 to 75°C
IKS-6728A-4GTXSFP-48-48-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports,
and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies (48 VDC), -40 to 75°C
IKS-6726A-2GTXSFP-HV-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports,
and 2 slots for fast Ethernet modules, front cabling, 1 isolated power supply ( 85-264 VAC), -40 to 75°C
IKS-6726A-2GTXSFP-HV-HV-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports,
and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies ( 85-264 VAC), -40 to 75°C
IKS-6726A-2GTXSFP-24-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports,
and 2 slots for fast Ethernet modules, front cabling, 1 isolated power supply (24 VDC), -40 to 75°C
IKS-6726A-2GTXSFP-24-24-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports,
and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies (24 VDC), -40 to 75°C
IKS-6726A-2GTXSFP-48-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports,
and 2 slots for fast Ethernet modules, front cabling, 1 isolated power supply (48 VDC), -40 to 75°C
IKS-6726A-2GTXSFP-48-48-T Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports,
and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies (48 VDC), -40 to 75°C
