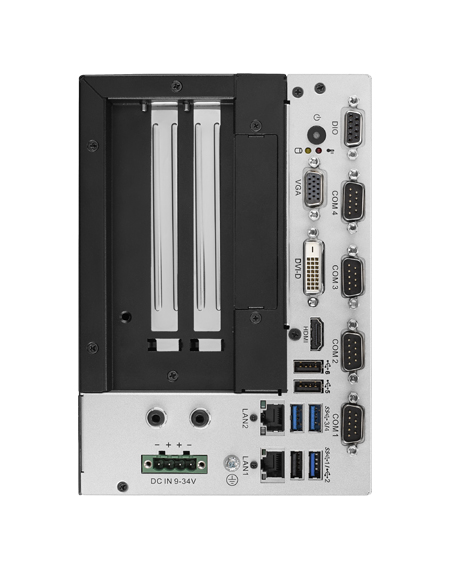

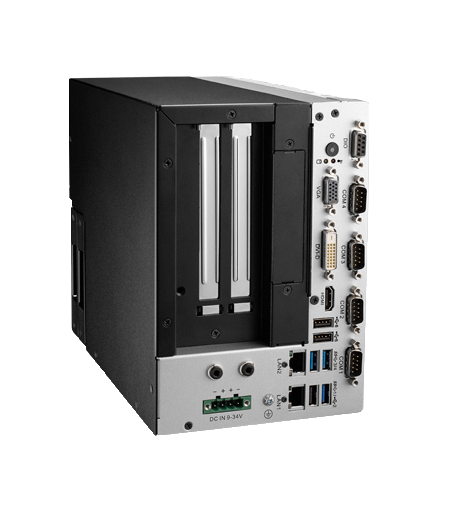

Advantech ARK-3405

Intel® Celeron™ N3160 Fanless Embedded Box PC with Rich Expansion and Dual Removable 2.5" HDD Drive Bays

Advantech ARK-3405
  • PropertiesProperties
  • DescriptionDescription
  • Further InformationFurther Information
  • PDFPDF
  • Intel® Celeron™ N3160 Quad Core 2.24GHz SoC with Turbo boost Support
  • Supports VGA /DVI-D/HDMI triple independent display
  • Support 2 GbE, 3 USB 3.0, 3 USB 2.0, 1 DIO, audio and 4 COM ports
  • Two removable 2.5" SATA HDD drive bays
  • Flexible Expansion via PCI/PCIe x1
  • Support 2 Mini PCIe with 1 SIM holder for communication module
  • Wide range power input 9-36V
  • Advantech iDoor module compatible
Intel® Celeron™ N3160 Fanless Embedded Box PC with Rich Expansion and Dual Removable 2.5" HDD Drive Bays
ProdGrafik

Processor

    CPU
    Intel Celeron N3160 processor

    Core Number
    4

    Max Speed
    1.6GHz, Turbo boost up to 2.24GHz

    BIOS
    AMI EFI 64 Mbit BIOS




Memory

    Technology
    DDR3L 1600 MHz

    Max. Capacity
    8 GB

    Socket
    1 x 204-pin SO-DIMM




Graphics

    Chipset
    Intel HD 8 Gen Integrated Graphic Engine

    VGA
    Up to 1920 x 1200 at 60 Hz

    DVI-D
    1920 x 1200 at 60Hz

    HDMI
    2560 x 1600 @ 60Hz; 3840 x 2160 @ 30Hz

    Triple Display
    VGA + DVI-D + HDMI




Ethernet

    LAN1
    10/100/1000 Mbps Intel i210 Ethernet controller, support Wake on LAN

    LAN2
    10/100/1000 Mbps Intel i210 Ethernet controller, support Wake on LAN




Audio

    Interface
    Realtek ALC892; Mic-in and Line-Out




I/O

    Serial
    2 x RS-232, 2 x RS-232/422/485 w/ auto flow control (Default) ; COM 4 support 5V/12V power supply (by jumper) ; Additional 2 x RS-232 ports support by cable and bracket (Optional by project support)

    USB
    3 x USB 2.0 + 3 x USB 3.0, 1 x internal USB2.0

    Digital I/O
    Support 8-bit digital IO

    PS/2
    1 x PS/2 port support by cable and bracket (Optional by project support)




Others

    Watchdog timer
    255 levels timer interval, setup by software

    TPM
    TPM 2.0 (Optional by project support)




Expansion

    PCI
    2 Slots PCI (default)

    PCI Express x 1
    1 Slot PCI and 1 Slot PCIe x1 (Optional: AMO-R020E); 2 Slots PCIe x1 (Optional :AMO-R019E)

    Mini PCIe
    2 x Full-size Mini PCIe with 1 SIM holder




Storage

    HDD
    Two 2.5" SATA removable HDD Bays with maximum device height 12.5mm

    SD card
    1 internal SD Card slot support




Software Support

    Microsoft Windows
    Windows 10, Windows 8.1, Windows 7, WES8.1 , WES7

    Linux
    Support by project




Power

    Power Type
    AT/ATX

    Input Voltage
    9 ~ 36 VDC

    Power Adaptor
    AC to DC, DC12V / 7A, 84 W (Optional)

    Consumption
    Typical 9.7 W, Max. 22.8 W




Mechanical

    Construction
    Aluminum housing

    Mounting
    Desk/wall-mounting

    Dimensions
    142.8 x 198 x 215 mm (5.63" x 7.79" x 8.46")

    Weight
    3.16 kg (6.97 lb)




Environment

    Operational Temperature
    With extended temperature peripherals: -10 ~ 55 °C (-14 ~ 131 °F) with 0.7m/s air flow, With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flow

    Storage Temperature
    -40 ~ 85° C (-40 ~ 185° F)

    Relative Humidity
    95% @ 40° C (non-condensing)

    Vibration during Operation
    With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    Shock During Operation
    With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration




Certification

    EMC
    CE/FCC Class A, CCC, BSMI

    Safety Certifications
    CB, UL, CCC, BSMI
