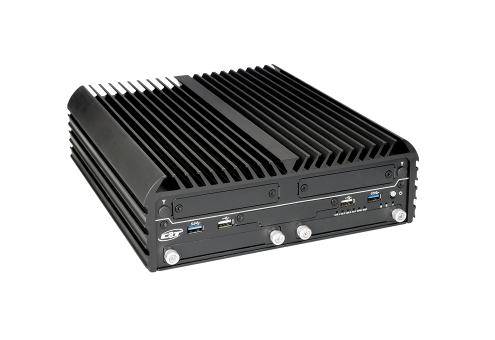

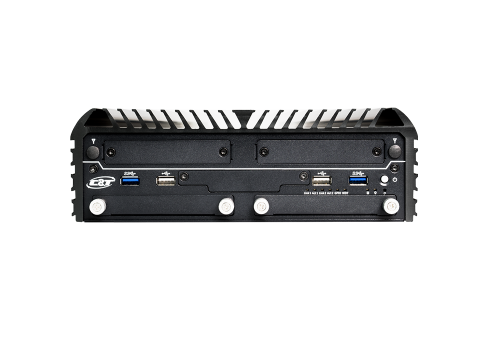

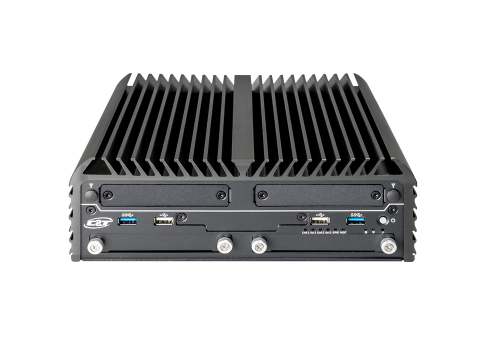

C&T Solution RCO-6000 Series

prodgraf


Superior Fanless Embedded System with LGA 1151 socket for 6th Gen. Intel® Core™ i7/i5/i3 or Pentium® / Celeron® Desktop Processor



Properties


Description

Based on 6th Gen. Intel® Core™ i7-6700TE (3.4GHz, Quad Core) / i5-6500TE (3.3GHz, Quad Core) / i3-6100TE (2.7GHz, Dual Core) or Pentium® G4400TE (2.4GHz, Dual Core) / Celeron® G3900TE (2.3GHz, Dual Core) Desktop processor, RCO-6000 series is an extreme features integration, outstanding system performance, versatile I/O connections, and rugged reliability fanless embedded systems. It offers dramatically enhanced CPU and graphics performance, wide power and feature scalability, and advanced features, modularize expansion I/O, rich connectivity interfaces, wide range (9~48V) DC power input, and high reliability even operating in temperature extremes (-25°C~+70°C).

Featuring with completely cable-less designed, high functional, one-piece housing design, and anti-vibration, RCO-6000 series are ruggedized systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC power input makes RCO-6000 series are safety system for all industrial applications.




ProdGrafik

Further Information


System




Display




Storage




Expansion




I/O




Operating System




Power




Environment




Physical





ORDERING INFORMATION
Available Models
RCO-6000 Superior Fanless Embedded System with LGA 1151 for Intel® 6th Gen Processor and Q170 PCH, 2x LAN
RCO-6000-4L Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 6x LAN
RCO-6000-4L-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x M12 LAN
RCO-6000-8L Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 10x LAN
RCO-6000-8L-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x M12 LAN
RCO-6000-4P Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x PoE
RCO-6000-4P-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x M12 PoE
RCO-6000-8P Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x PoE
RCO-6000-8P-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x M12 PoE
RCO-6011E Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 1x PCIe x16 expansion
RCO-6011E-4L Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 6x LAN, 1x PCIe x16 expansion
RCO-6011E-4L-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x M12 LAN, 1x PCIe x16 expansion
RCO-6011E-8L Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 10x LAN, 1x PCIe x16 expansion
RCO-6011E-8L-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x M12 LAN, 1x PCIe x16 expansion
RCO-6011P Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 1x PCI expansion
RCO-6011P-4L Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 6x LAN, 1x PCI expansion
RCO-6011P-4L-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x M12 LAN, 1x PCI expansion
RCO-6011P-8L Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 10x LAN, 1x PCI expansion
RCO-6011P-8L-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x M12 LAN, 1x PCI expansion
RCO-6011P-4P Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x PoE, 1x PCI expansion
RCO-6011P-4P-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x M12 PoE, 1x PCI expansion
RCO-6011P-8P Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x PoE, 1x PCI expansion
RCO-6011P-8P-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x M12 PoE, 1x PCI expansion
RCO-6022EE Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 2x PCIe x8 expansion
RCO-6022EE-4L Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 6x LAN, 2x PCIe x8 expansion
RCO-6022EE-4L-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x M12 LAN, 2x PCIe x8 expansion
RCO-6022EE-8L Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 10x LAN, 2x PCIe x8 expansion
RCO-6022EE-8L-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x M12 LAN, 2x PCIe x8 expansion
RCO-6022EE-4P Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x PoE, 2x PCIe x8 expansion
RCO-6022EE-4P-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x M12 PoE, 2x PCIe x8 expansion
RCO-6022EE-8P Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x PoE, 2x PCIe x8 expansion
RCO-6022EE-8P-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x M12 PoE, 2x PCIe x8 expansion
RCO-6022PP Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 2x PCI expansion
RCO-6022PP-4L Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 6x LAN, 2x PCI expansion
RCO-6022PP-4L-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x M12 LAN, 2x PCI expansion
RCO-6022PP-8L Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 10x LAN, 2x PCI expansion
RCO-6022PP-8L-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x M12 LAN, 2x PCI expansion
RCO-6022PP-4P Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x PoE, 2x PCI expansion
RCO-6022PP-4P-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x M12 PoE, 2x PCI expansion
RCO-6022PP-8P Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x PoE, 2x PCI expansion
RCO-6022PP-8P-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x M12 PoE, 2x PCI expansion
RCO-6022PE Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 1x PCIe x16, 1x PCI expansion
RCO-6022PE-4L Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 6x LAN, 1x PCIe x16, 1x PCI expansion
RCO-6022PE-4L-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x M12 LAN, 1x PCIe x16, 1x PCI expansion
RCO-6022PE-8L Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 10x LAN, 1x PCIe x16, 1x PCI expansion
RCO-6022PE-8L-M12Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x M12 LAN, 1x PCIe x16, 1x PCI expansion
RCO-6022PE-4P Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x PoE, 1x PCIe x16, 1x PCI expansion
RCO-6022PE-4P-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 4x M12 PoE, 1x PCIe x16, 1x PCI expansion
RCO-6022PE-8P Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x PoE, 1x PCIe x16, 1x PCI expansion
RCO-6022PE-8P-M12 Superior fanless embedded system with LGA 1151 for Intel 6th Gen Processor and Q170 PCH, 2x LAN, 8x M12 PoE, 1x PCIe x16, 1x PCI expansion
Optional Accessories
1-E09A12001 Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch
SFICBL022 Power Cord, 3-pin US Type, 180cm
1-TPCD00002 Power Cord, European Type, 180cm
1-TPCD00001 Power Cord, 3-pin UK Type, 180cm



Packing List



PDF

PDF description C&T Solution RCO-6000 Datasheet (301.6 kB)

PDF description C&T Solution RCO-6011E Datasheet (342.4 kB)

PDF description C&T Solution RCO-6011P Datasheet (382.1 kB)

PDF description C&T Solution RCO-6022EE Datasheet (343.0 kB)

PDF description C&T Solution RCO-6022PP Datasheet (343.0 kB)

PDF description C&T Solution RCO-6022PE Datasheet (343.1 kB)
