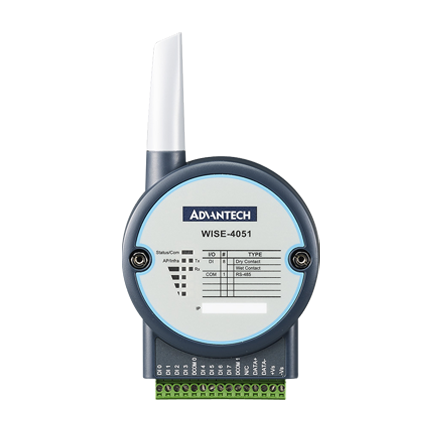

Advantech WISE-4051

8-ch Digital Input IoT Wireless I/O Module with RS-485 Port

Advantech WISE-4051
  • PropertiesProperties
  • DescriptionDescription
  • Further InformationFurther Information
  • PDFPDF
  • 8-ch digital input with 1-port RS-485 for Modbus devices
  • 2.4GHz Wi-Fi reducing the wiring cost during big data acquisition
  • Easily extend the existing network by adding APs, and share existing Ethernet software
  • Configured by mobile devices directly without installing any software or Apps
  • Zero data loss using the log function with RTC time stamp
  • Data can be automatically pushed to Dropbox or computer
  • Supports RESTful web API in JSON format for IoT integration

The WISE-4000 series is an Ethernet-based wireless IoT device, integrated with IoT data acquisition, processing, and publishing functions. As well as various I/O types, the WISE-4000 series provides data pre-scaling, data logic, and data logger functions. These data can be accessed via mobile devices and be published to the cloud with security at anytime and anywhere.

ProdGrafik

Product Specifications


    Digital Input

      Channels
      8-ch Dry Contact or Wet Contact

      Counter Input
      2Hz (32 bit + 1 bit overflow)

      Frequency Input
      0.1 ~ 2Hz

      Inverted DI Status
      Support

      Isolation
      3,000 Vrms

      Keep/Discard Counter Value when Power Off
      Support

      Logic level
      Dry contact: Logic 0: Open, Logic 1: Close to GND



    Serial Communication

      Baud Rate (bps)
      1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200

      Data Bits
      7, 8

      Parity
      None, Odd, Even

      Ports
      1

      Protection
      15 kV ESD

      Protocol
      Modbus/RTU (Total 32 address by max. 8 instruction)

      Serial Signal
      DATA+, DATA-

      Stop Bits
      1, 2

      Type
      RS-232



    General

      Certifications
      CE, FCC, R&TTE, NCC, SRRC, RoHS

      Dimensions (W x H x D)
      80 x 148 x 25 mm

      Protocol
      Modbus/TCP, TCP/IP, UDP, HTTP, DHCP

      Connectors
      Plug-in screw terminal block (I/O and power)

      Data Logger
      Up to 10,000 samples with RTC time stamp

      Enclosure
      PC

      LED Indicators
      Status, Communication, Network Mode, Quality Serial Tx, Rx

      Mounting
      DIN 35 rail, wall, and stack

      Real-time Clock
      Yes, with battery backup

      Watchdog Timer
      System (1.6 second) & Communication (programmable)

      Web Server
      RESTful Web API in JSON format, HTML5 Configuration Interface with JavaScript & CSS3



    Wireless Interface

      Antenna Connector
      Reverse SMA

      Frequency Band
      2.4GHz

      IEEE Standard
      IEEE 802.11b/g/n

      Network Mode
      Infrastructure, Limited AP

      Outdoor Range
      110m (L.O.S.)

      Security
      WPA2 Personal & Enterprise



    Environment

      Operating Humidity
      20 ~ 95% RH (non-condensing)

      Operating Temperature
      -25 ~ 70�C (-13~158�F)

      Storage Humidity
      0 ~ 95% RH (non-condensing)

      Storage Temperature
      -40 ~ 85�C ( -40 ~ 185�F)



    Power

      Input Range
      10 ~ 30 VDC

      Power Consumption
      2.2 W @ 24 VDC

      Protection
      Power Reversal Protection
