MOXA PT-510 Series

prodgraf


IEC 61850-3 10-port managed DIN-Rail Ethernet switches



Properties


Description

The PowerTrans PT-510 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-510’s optical fiber fast Ethernet backbone, redundant ring, and 24/48 VDC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-Rail and wallmount design of the PT-510 makes network planning easy, and allows greater flexibility by letting you install up to 10 fast Ethernet ports for power distribution applications.


Cyber-security Features






ProdGrafik

Further Information


Technology

Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1s for Multiple Spanning Tree Protocol

Protocols IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, EtherNet/IP, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 PTP V2, IPv6, NTP Server/Client

MIB
MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control
IEEE 802.3x flow control, back pressure flow control


Switch Properties

Priority Queues
4

Max. Number of Available VLANs
64

VLAN ID Range
VID 1 to 4094

IGMP Groups
256

MAC Table Size
8 K

Packet Buffer Size
1 Mbit


Interface

RJ45 Ports
10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection

Fiber Ports
100BaseFX ports (SC/ST/LC connector)

Console Port
RS-232 (RJ45)

LED Indicators
PWR1, PWR2 (DC models only), FAULT, MSTR/HEAD, CPLR/TAIL

Alarm Contact
1 relay output with current carrying capacity of 1 A @ 24 VDC


Optical Fiber



Power Requirements

Input Voltage
Input Current
(all ports are equipped with fiber)
Overload Current Protection
Present

Connection
5-pin terminal blocks

Reverse Polarity Protection
Present


Physical Characteristics

Housing
IP40 protection

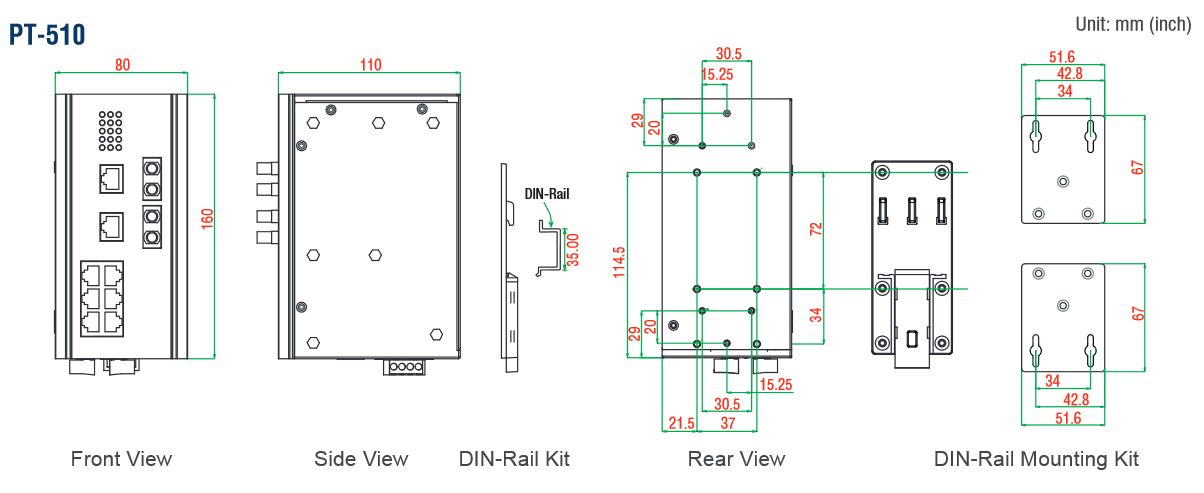

Dimensions
80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in)

Weight
1210 g

Installation
DIN-rail mounting, wall mounting (with optional kit)


Environmental Limits

Operating Temperature
-40 to 85°C (-40 to 185°F), cold start requires min. of 100 VAC at -40°C

Storage Temperature
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)


Standards and Certifications

Safety
UL 508

EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A

Power Automation
IEC 61850-3, IEEE 1613



Ordering Information

           Available Modules
PT-510-SS-SC-24 IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX single-mode ports with SC connectors, 1 isolated power supply (24 VDC),
-40 to 85°C operating temperature
PT-510-SS-SC-48 IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX single-mode ports with SC connectors, 1 isolated power supply (48 VDC),
-40 to 85°C operating temperature
PT-510-MM-SC-24 IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX multi-mode ports with SC connectors, 1 isolated power supply (24 VDC),
-40 to 85°C operating temperature
PT-510-MM-SC-48 IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX multi-mode ports with SC connectors, 1 isolated power supply (48 VDC),
-40 to 85°C operating temperature
PT-510-MM-ST-24 IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX multi-mode ports with ST connectors, 1 isolated power supply (24 VDC),
-40 to 85°C operating temperature
PT-510-MM-ST-48 IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX multi-mode ports with ST connectors, 1 isolated power supply (48 VDC),
-40 to 85°C operating temperature
PT-510-SS-LC-24 IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX single-mode ports with LC connectors, 1 isolated power supply (24 VDC),
-40 to 85°C operating temperature
PT-510-SS-LC-48 IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX single-mode ports with LC connectors, 1 isolated power supply (48 VDC),
-40 to 85°C operating temperature
PT-510-MM-LC-24 IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX multi-mode ports with LC connectors, 1 isolated power supply (24 VDC),
-40 to 85°C operating temperature
PT-510-MM-LC-48 IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX multi-mode ports with LC connectors, 1 isolated power supply (48 VDC),
-40 to 85°C operating temperature
PT-510-SS-SC-HV IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX single-mode ports with SC connectors, 1 isolated power supply (88-300 VDC or 85-264 VAC),
-40 to 85°C operating temperature
PT-510-MM-SC-HV IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX multi-mode ports with SC connectors, 1 isolated power supply (88-300 VDC or 85-264 VAC),
-40 to 85°C operating temperature
PT-510-MM-ST-HV IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX multi-mode ports with ST connectors, 1 isolated power supply (88-300 VDC or 85-264 VAC),
-40 to 85°C operating temperature
PT-510-MM-LC-HV IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX multi-mode ports with LC connectors, 1 isolated power supply (88-300 VDC or 85-264 VAC),
-40 to 85°C operating temperature
PT-510-SS-LC-HV IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports,
and 2 100BaseFX single-mode ports with LC connectors, 1 isolated power supply (88-300 VDC or 85-264 VAC),
-40 to 85°C operating temperature
PT-510-3S-SC-HV IEC 61850-3 managed DIN-Rail Ethernet switch, with 7 10/100BaseT(X) ports,
and 3 100BaseFX single-mode ports with SC connectors, 1 isolated power supply (88-300 VDC or 85-264 VAC),
-40 to 85°C operating temperature
PT-510-3S-SC-24 IEC 61850-3 managed DIN-Rail Ethernet switch, with 7 10/100BaseT(X) ports,
and 3 100BaseFX single-mode ports with SC connectors,
1 isolated power supply (24 VDC), -40 to 85°C operating temperature
PT-510-3S-SC-48 IEC 61850-3 managed DIN-Rail Ethernet switch, with 7 10/100BaseT(X) ports,
and 3 100BaseFX single-mode ports with SC connectors,
1 isolated power supply (48 VDC), -40 to 85°C operating temperature
PT-510-4M-ST-24 IEC 61850-3 managed DIN-Rail Ethernet switch, with 6 10/100BaseT(X) ports,
and 4 100BaseFX multi-mode ports with ST connectors,
1 isolated power supply (24 VDC), -40 to 85°C operating temperature
PT-510-4M-ST-48 IEC 61850-3 managed DIN-Rail Ethernet switch, with 6 10/100BaseT(X) ports,
and 4 100BaseFX multi-mode ports with ST connectors,
1 isolated power supply (48 VDC), -40 to 85°C operating temperature
PT-510-4M-ST-HV IEC 61850-3 managed DIN-Rail Ethernet switch, with 6 10/100BaseT(X) ports,
and 4 100BaseFX multi-mode ports with ST connectors,
1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature




PDF

PDF description MOXA PT-510 Series Datasheet (496.2 kB)
