NetModule Adhesive Indoor Coach Antenna MIMO WiFi (ECE-R 118)
Coach adhensiv mounted antenna for MIMO WiFi
- MIMO WiFi 2.4 GHz
- MIMO WiFi 5 GHz
- 2408 - 2480 MHz (802.11b/g/n)
- 5150 - 5850 MHz (802.11a/h/j/n/ac)

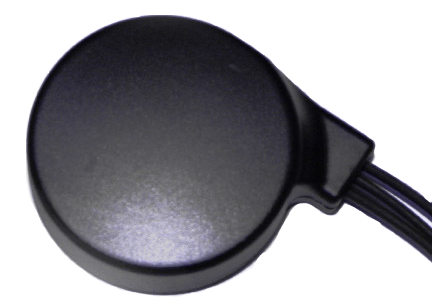

The Antenna-Coach-Indoor-2W omnidirectional combo antenna for signal enhancement in WiFi networks. It is special designed according to ECE-R 118 burning behaviour and can be used in the interior contruction of motor vehicles. The antenna combines two WiFi antennas in a single housing and thus supports MIMO WiFi 2.4/5 GHz. WiFi is linear polarized.
The antenna is RoHS, REAch and ECE-R 118 compliant and with protection level IP69K and supported temperature range from -40 °C to +85 °C it is suited for indoor usage. The antenna can be mounted with adhesive pad and two included 3 m cables allow a flexible positioning.
SPECIFICATIONS
Supported Technologies | MIMO WiFi 2.4 / 5 GHz |
WiFi | Frequencies: 2408 - 2480 MHz / 5150 - 5850 MHz VSWR*: < 2.0 typ Peak Gain*: +4 dBi typ (2400 MHz) / +1 dBi typ (5300 MHz) Radiation: Omnidirectional; Linear polarisation Connectors: 2x FAKRA female plug I (beige) or SMAf Cables: 2x RG174; 3m *) with 0.6 m cable |
Certifications | RoHS, REAch, ECE R 118 |
Protection level | IP69K |
Temperature range | -40 °C to to +85 °C |
Environment | Indoor |
Color | Black |

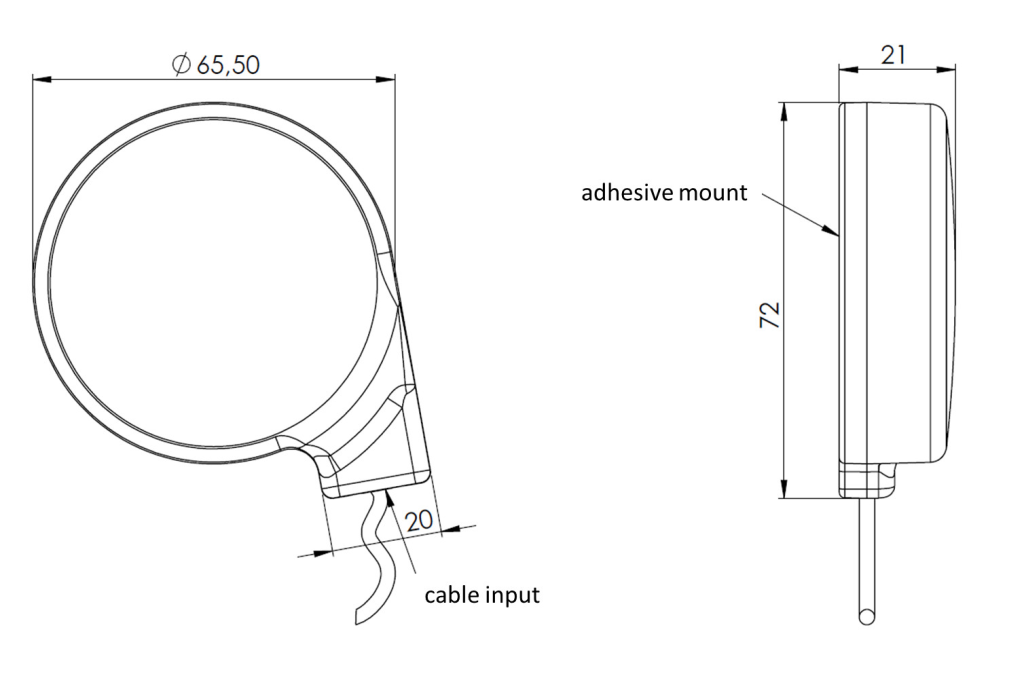

Dimensions | 65.5 mm(Ĝ) x 21 mm(H) |
Mounting | Adhesive Mount no ground plane needed |
Order number | Antenna-Coach-Indoor-2W (FAKRA) Antenna-Coach-Indoor-2WJs (SMA) |
